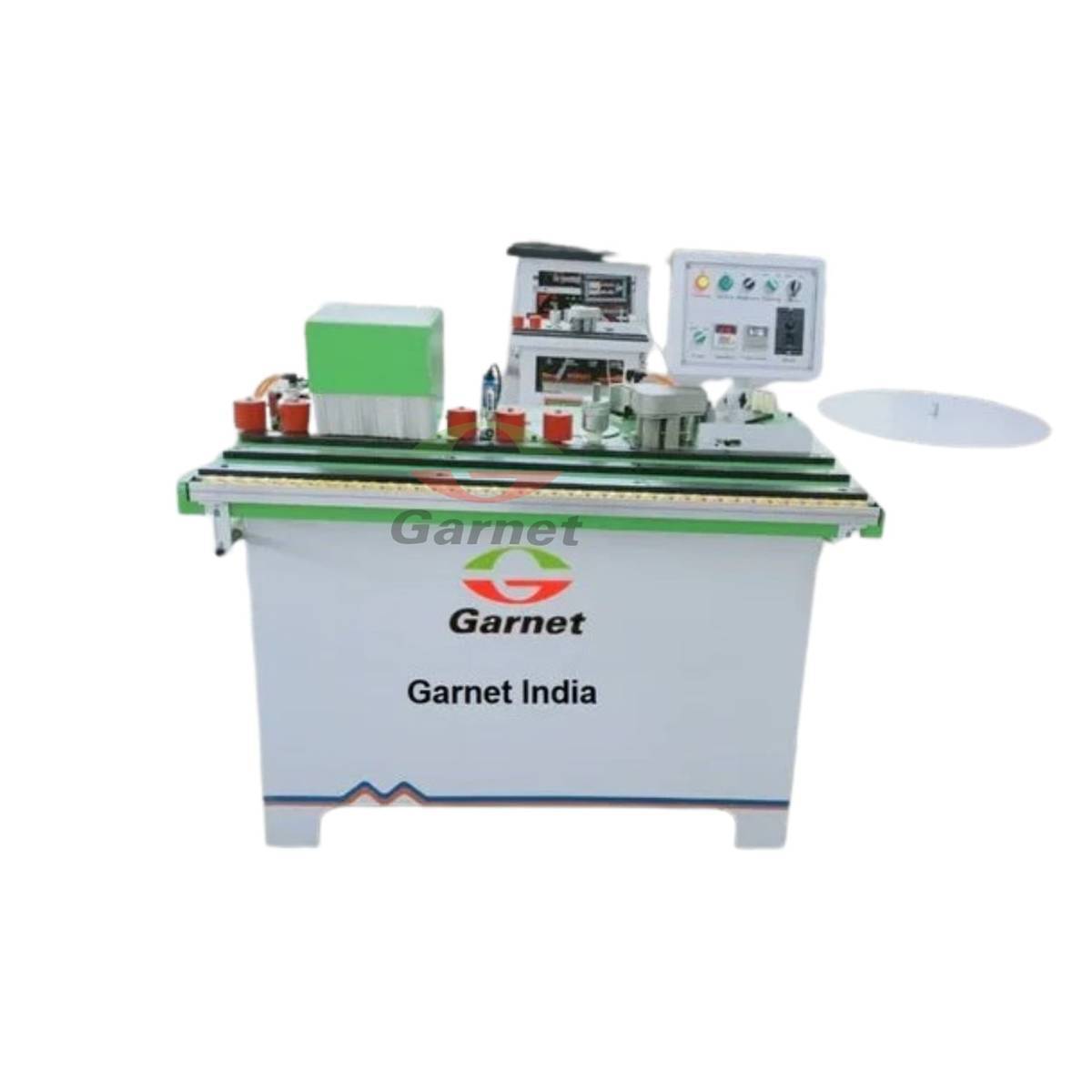

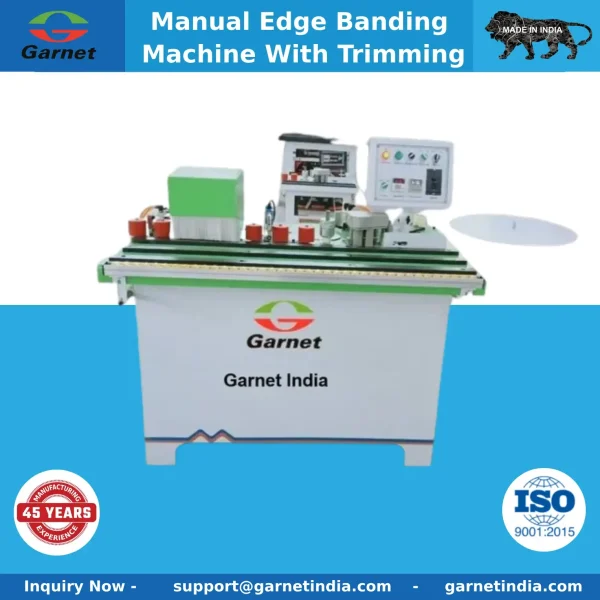

Manual Edge Banding Machine With Trimming | Buffing And End Cutting Functions

We have various types of Manual Edge Banding Machines, this machine does edge gluing, double side trimming, double side buffing (optional) and even end cutting function also. The machine has two separate parts, one is manual edge banding machine and another is the trimming and buffing part.
Manual Edge Banding Machine with functions is required to be operated in straight line like an automatic machine to get the result of trimming and buffing system. For Curved Boards the trimming and buffing functions cannot be used.

Specifications

Model: MEB-IN-04	Glue capacity:1.5-2Kg
Machine net weight: 250kg	Trimming thickness : 12-50mm
Edge band Width -12-50mm	Air pressure: 5mpa or 4-5 bar required
Trimming on Top and Bottom	Top and Bottom Buffing using same buffing wheels as automatic machine
Easy setting change available	End cutting using pneumatic system
Overall Size: 15008001150mm	Glue on edge band and board both
Edge band strip thickness :0.4-3mm	Heating time: 5-10min
Rated/heating power:3.5KW	Edge banding speed:2-8m/min
Single or Three Phase	Minimum radius:80mm
Edge banding can be done on convex curved surfaces	Idler roller guide for wider panel

Features – Manual Edge Banding Machine With Trimming, Buffing And End Cutting Functions

Manual Edge Banding Machine - Garnet india

Linear Bearing Based Movement of Tools like Automatic Machine

Made in India Motors for trimming and buffing

Spring loaded system for tool front and back

Easy Adjustment for trimming and buffing machine

End Cutting attachment for upto 2mm edge band

Heavy duty structure for better finish
